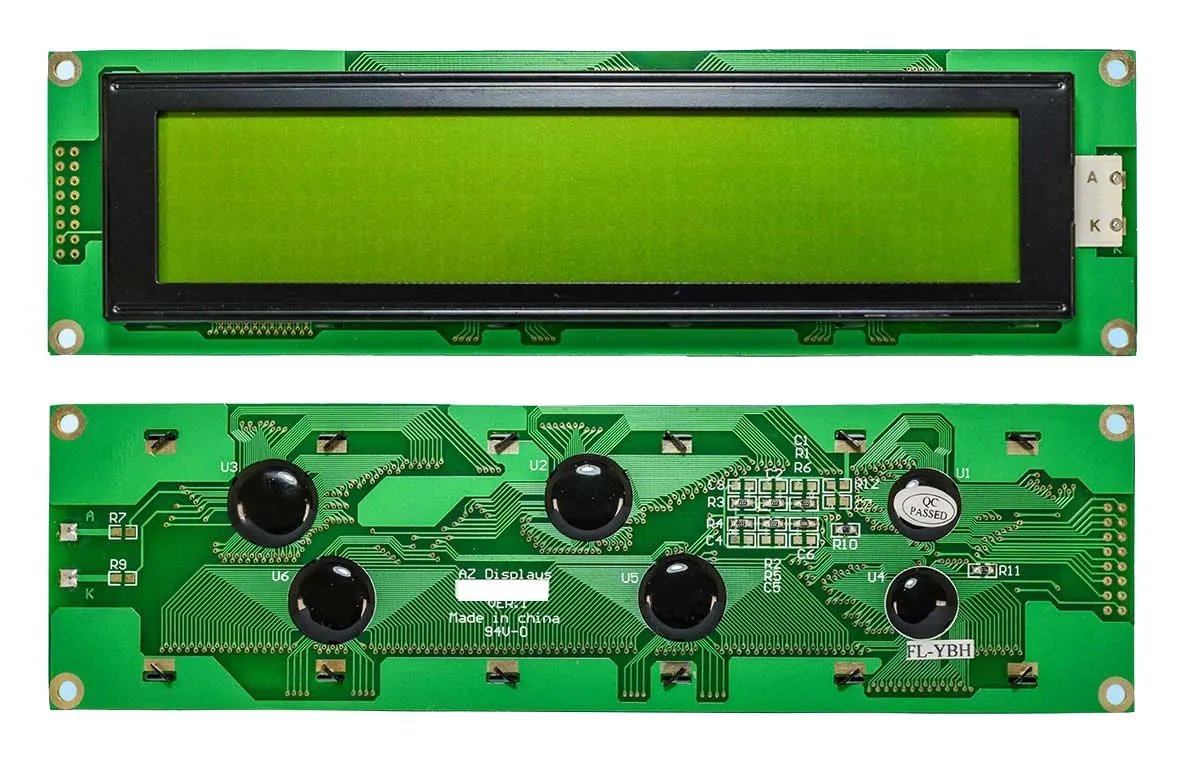

Character modules: ACM4004H-FL-YBW-R

Resources

ACM4004H

Features:

  • 40 Characters x 4 Lines
  • 5x7 Dot Matrix Character + Cursor
  • ST7066U-0A Equivalent
  • 4-bit or 8-bit MPU Interface

Product Specifics
SeriesACM4004H
Format40 x 4
Viewing Area (mm)147.0 x 29.5
Supply Voltage5.0V/3.3V
Outline Dimensions (mm)190.0X54.0X9.5mm
Polarizer TypeTransflective Positive
Backlight TypeLED
Backlight ColorYellow/Green
Fluid TypeYellow Mode STN

Nomenclature Diagram

Character Module Nomenclature
