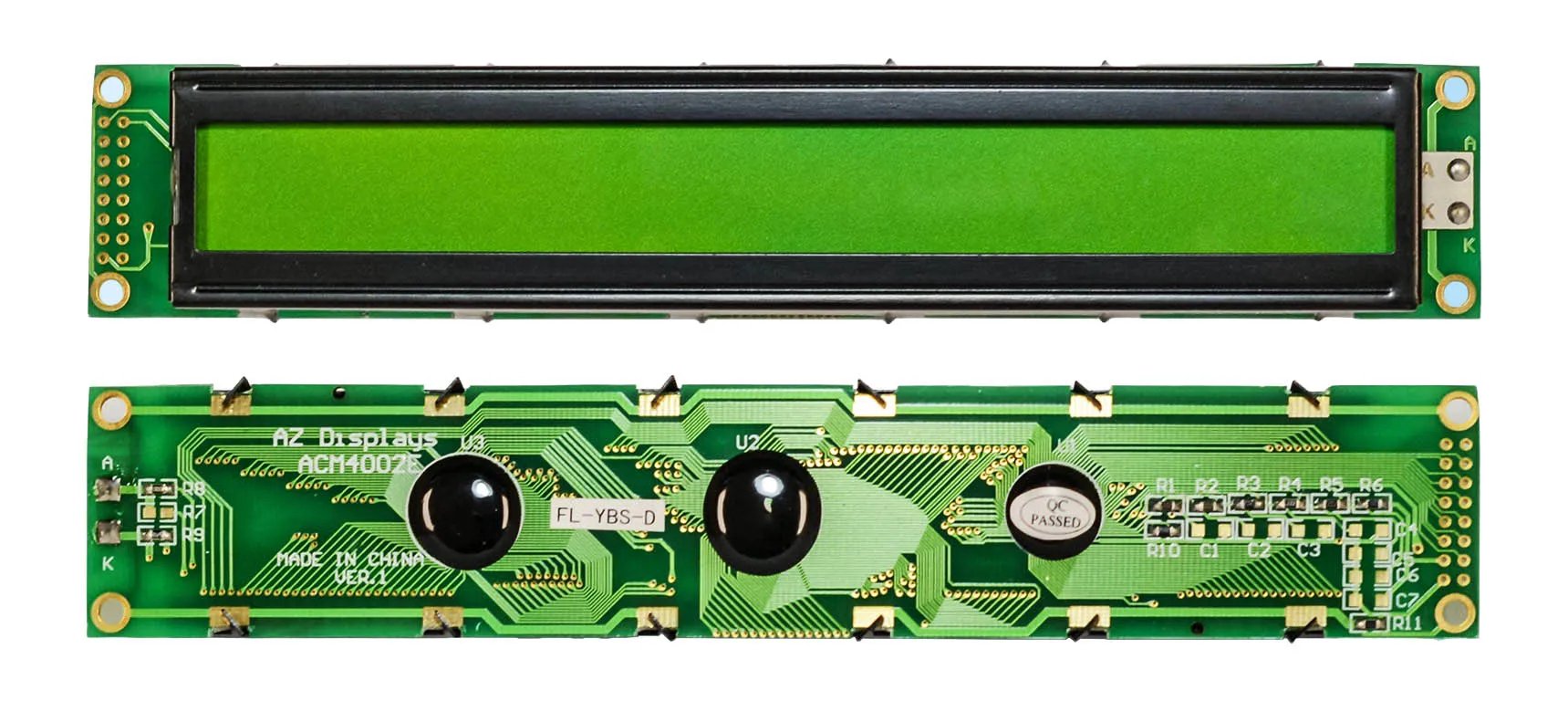

Character modules: ACM4002E-FL-YBW

Resources

ACM4002E

Features:

  • 40 Characters x 2 Lines
  • 5x7 Dot Matrix Character + Cursor
  • HD44780 Equivalent LCD Controller/Driver Built-In
  • 4-bit or 8-bit MPU Interface

Product Specifics
SeriesACM4002E
Format40 x 2
Viewing Area (mm)154.5 x 16.5
Supply Voltage5.0V/3.3V
Outline Dimensions (mm)182.0X33.5X9.5mm
Polarizer TypeTransflective Positive
Backlight TypeLED
Backlight ColorYellow/Green
Fluid TypeYellow Mode STN

Nomenclature Diagram

Character Module Nomenclature
