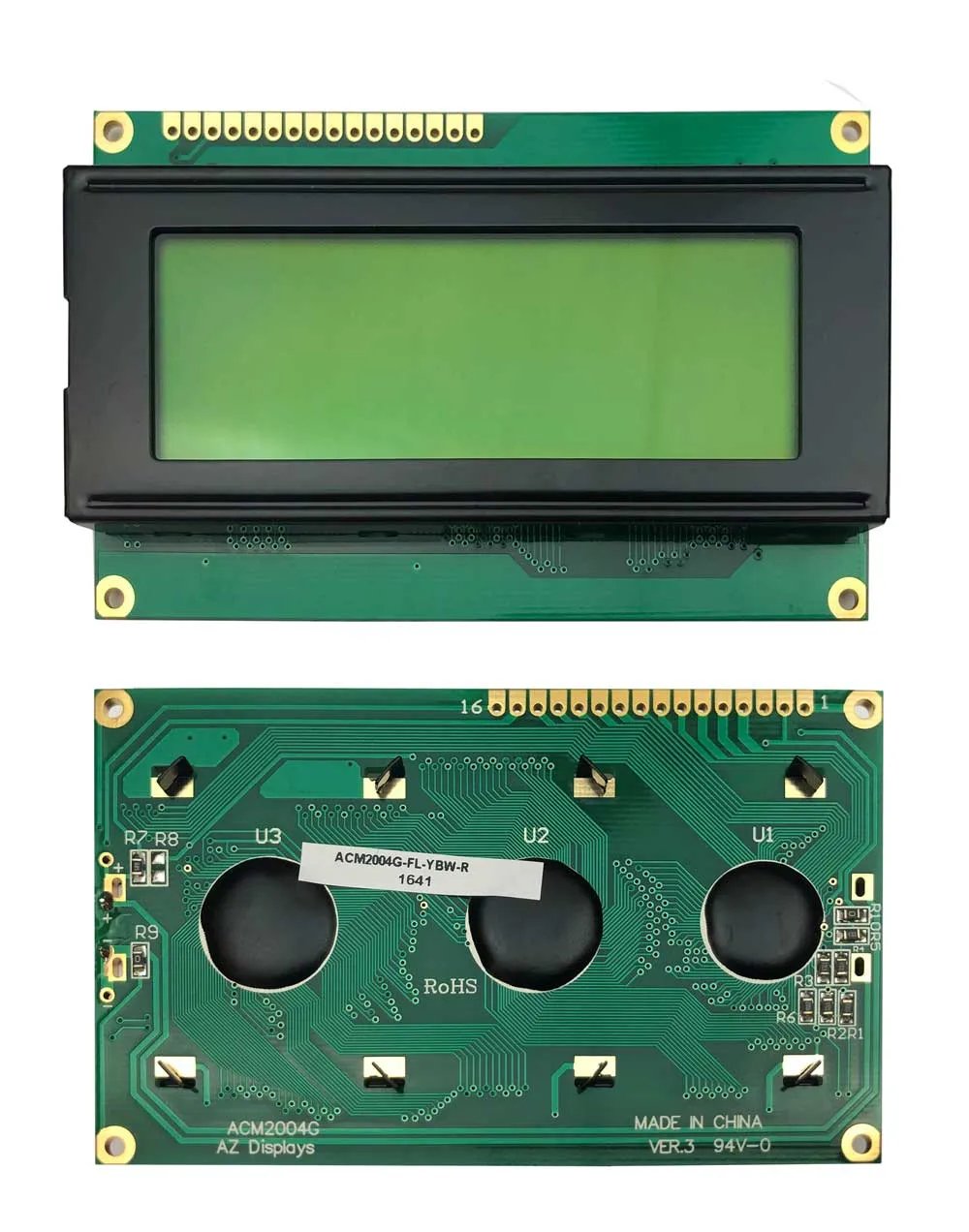

Character modules: ACM2004G-FL-YBW-R
Datasheet
View Part Drawing
Request a Quote
Total Qty Available: 0
Features:
- 20 Characters x 4 Lines
- 5x7 Dot Matrix Character + Cursor
- HD44780 Equivalent LCD Controller/Driver Built-In
- 4-bit or 8-bit MPU Interface
| Product Specifics | |
|---|---|
| Series | ACM2004G |
| Format | 20 x 4 |
| Viewing Area (mm) | 76.0 x 25.2 |
| Supply Voltage | 5.0V/3.3V |
| Outline Dimensions (mm) | 98.0X60.0X9.5mm |
| Polarizer Type | Transflective Positive |
| Backlight Type | LED |
| Backlight Color | Yellow/Green |
| Fluid Type | Yellow Mode STN |
Nomenclature Diagram
