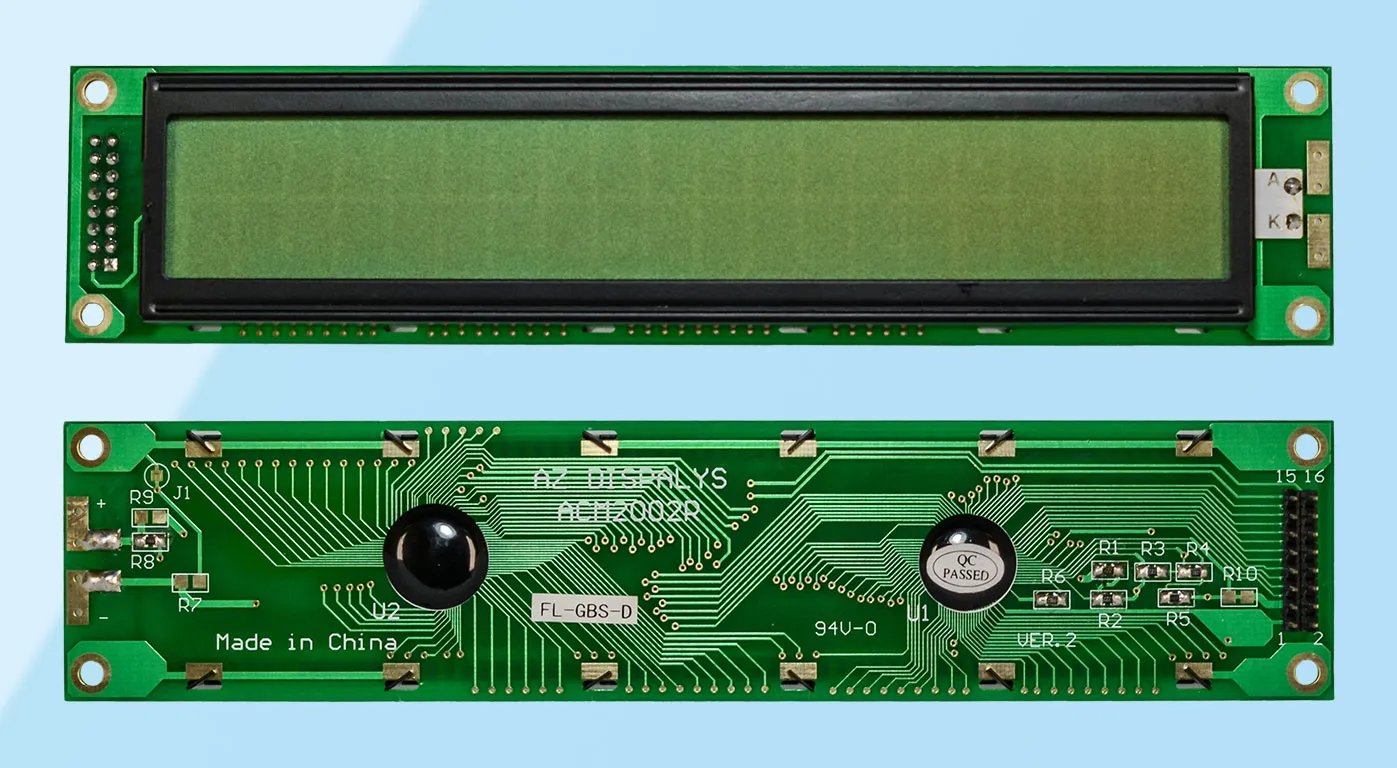

Character modules: ACM2002R-FL-GTW

Resources

ACM2002R

Features:

  • 20 Characters x 2 Lines
  • 5x7 Dot Matrix Character + Cursor
  • HD44780 Equivalent LCD Controller/Driver Built-In
  • 4-bit or 8-bit MPU Interface

Product Specifics
SeriesACM2002R
Format20 x 2
Viewing Area (mm)149.0 x 23.0
Supply Voltage5.0V/3.3V
Outline Dimensions (mm)180.0X40.0X9.5mm
Polarizer TypeTransflective Positive
Backlight TypeLED
Backlight ColorYellow/Green
Fluid TypeGrey Mode STN

Nomenclature Diagram

Character Module Nomenclature
