AZ Displays Development Board

TFT LCD Dev Board

4.3”, 5” and 7.0” displays

Development Board

AZ DISPLAYS AZD-A7N-1GB
AZ DISPLAYS AZD-A7N-1GB

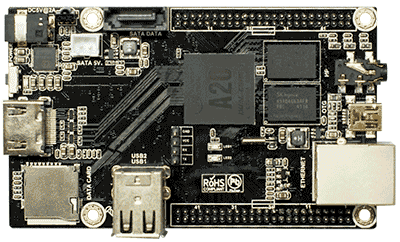

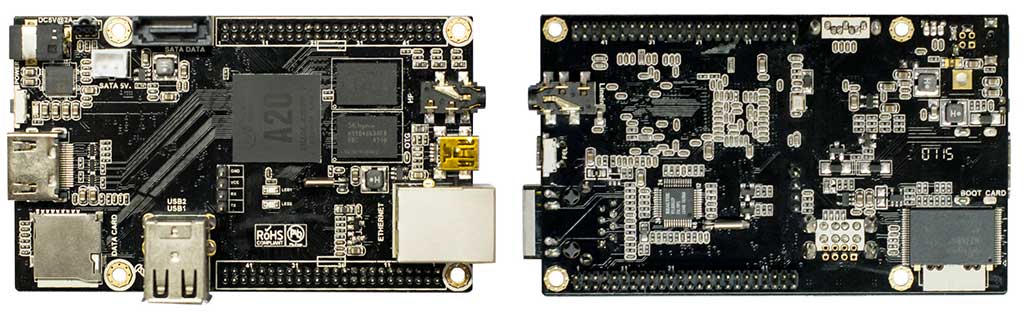

AZ Displays Development Board AZD-A7N-1GB is a high performance computing platform with dual core CPU and GPU. The development board is an open source hardware that is ideal for developers and engineers alike, with a low cost chip, rich interfaces, and extended GPIO pins.

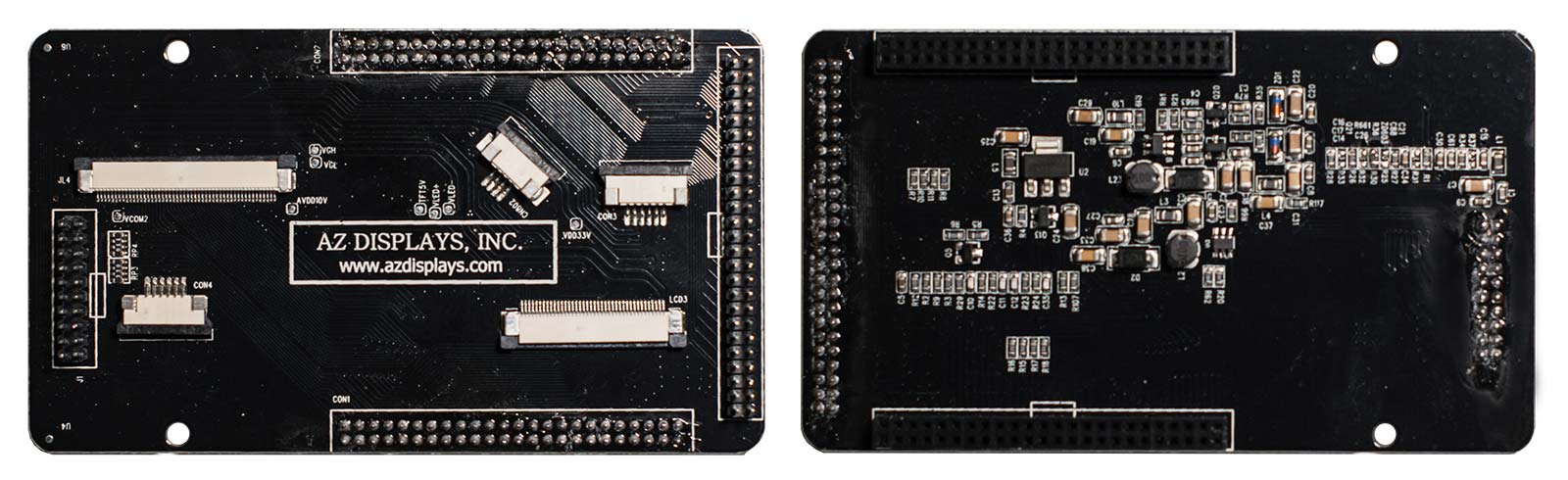

We are also introducing our interface board, AZD-43-5-7, which works seamlessly with our development board. With this board, you can drive all of our 4.3″ to 7″ TFT displays as the video output of the development board. It is also completely compatible with all our resistive touch panel and P-CAP touch panel, to allow for a convenient way to evaluate all technologies and sizes.

The beauty of this board is its ability to go beyond the scope of development, allowing designers to essentially utilize this board as their production controller board. The development board integrates the most commonly used interfaces, like the desktop PC, with standard options such as: RJ45, 2 USB, HDMI, USB OTG, Audio input and output, SATA port, Micro SD card slot, Infrared remote sensor on the board. In most cases, the interfaces are rich enough for software staffs. Powering up the device is also simple – all you need is a 5V@2.5A power cable (USB and DC jack both included). For convenience during development, the HDMI output allows developers to use a larger display. There are 96 pins expansion header which is 2mm pitch on the board, which provides very large application opportunity for industrial makers in product development stage.

Hardware Specifications

SOC AllWinner SOC A20, ARM® Cortex™-A7 Dual-Core,1GHz, ARM® Mali 400 MP2 complies with OpenGL ES 2.0/1.1
Memory 1GB DDR3@480MHz (960MTPS)
Storage NAND Flash, 4GB default, support TSD flash with SDIO interface
TF Card Micro SD card slot, up to 32GB
SATA Support 2.5 inch HDD/SSD up to 2TB
Ethernet 10M/100M RJ45
Display Output 4.3”,5”& 7”TFT LCD (Require interface board), HDMI Port A, HDMI V1.4a, support 1080P@60Hz resolution
Audio Support 3.5mm jack for Audio output, Support 3.5mm jack for Line-In

LEDs Power LED x 1, User LED x 2
Extended Output I2C, SPI, RGB/LVDS for LCD, CSI/TS for camera, FM-IN, ADC, CVBS output, VGA, SPDIF-OUT, RTP, and some more

Other Specifications

Operating Temperature -20℃~70℃
Environment Friendly RoHS
Radio Standard: FCC & CE compatible
Board Size 100mm(W) x 60mm(H) x 18mm(T)
Packing Weight 180g
Packing Size 146mm(W) x 100mm(H) x 68mm(T)
