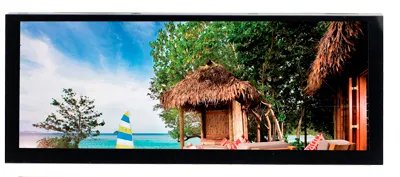

ATM0680L3A-CT Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 6.8 |
| Resolution | 480 X 1280 |
| Brightness (Nits) | 920 |
| Contrast | 1000 |
| Backlight | LED |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | |
| Operation Temperature (℃) | -20~+80 |
| Storage Temperature (℃) | -30~+70 |
| Interface | MIPI 4-L |
| Active Area | 108.00X64.80mm |
| Outline Dimension | 120.70X75.80X4.20mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
