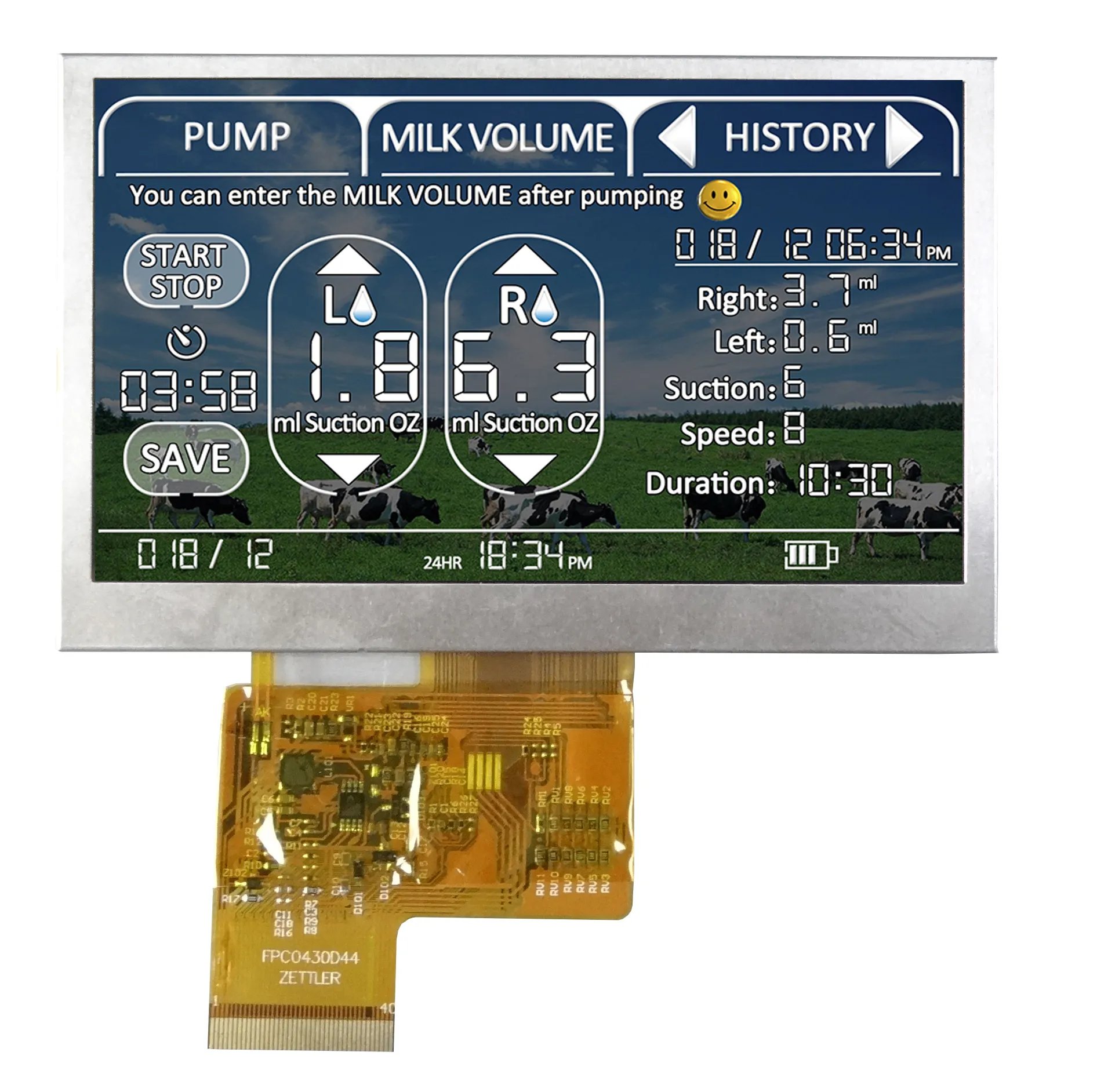

ATM0430D44 Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 496
| Product Specifics | |
|---|---|
| Overall Module Size | 4.3 |
| Resolution | 800 X 480 |
| Brightness (Nits) | 700 |
| Contrast | 800 |
| Backlight | LED |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | |
| Operation Temperature (℃) | -20~+80 |
| Storage Temperature (℃) | -30~+70 |
| Interface | RGB |
| Active Area | 95.04X53.856mm |
| Outline Dimension | 105.50X67.20X2.60mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
