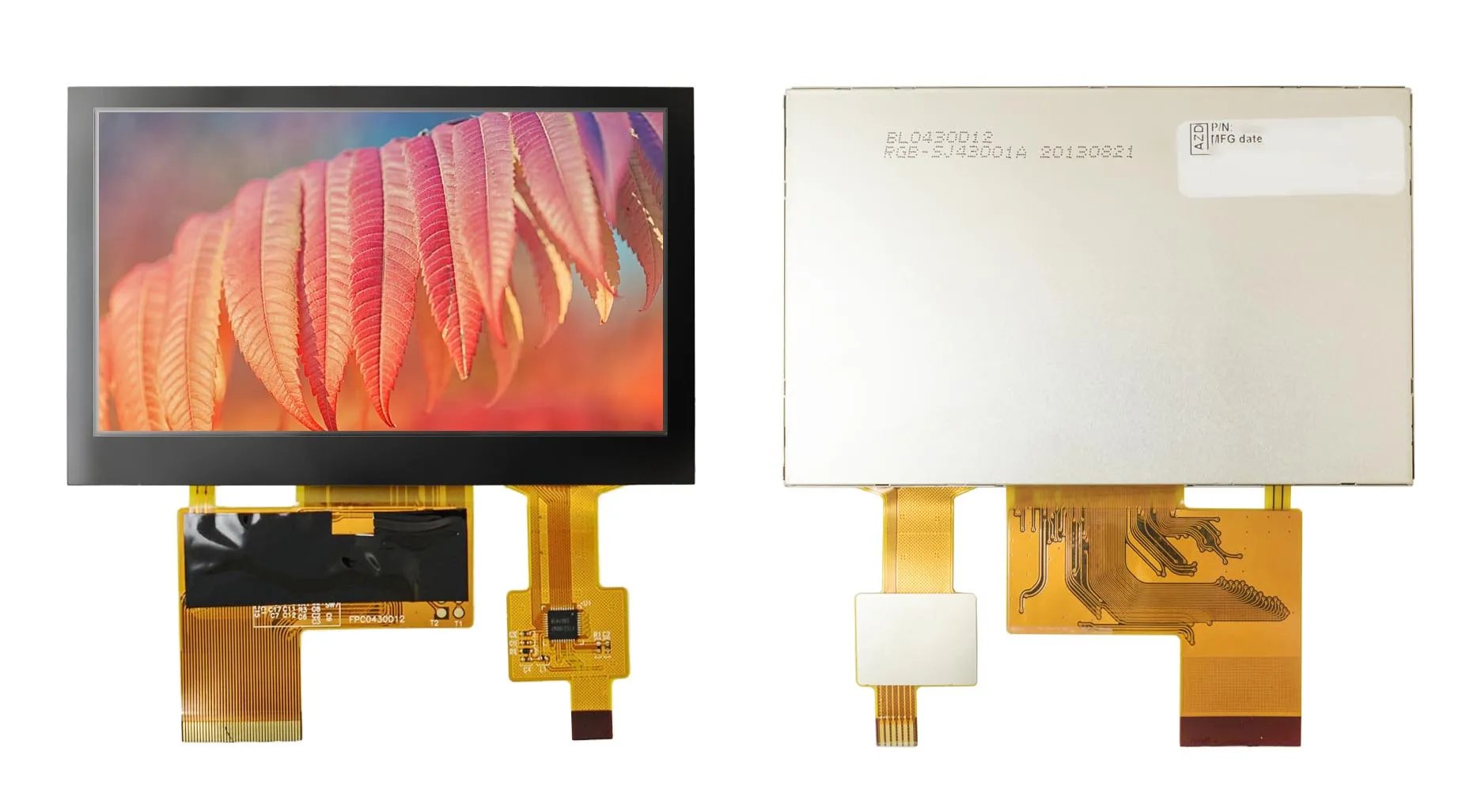

ATM0430D12-CT Product Page
Datasheet
3D CAD File (IGS)
View Part Drawing
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 4.3 |
| Resolution | 480 X 272 |
| Brightness (Nits) | 430 |
| Contrast | 500 |
| Backlight | LED |
| Viewing Angle | +70/-70 +70/-50 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | Digital RGB |
| Active Area | 95.04X53.856 |
| Outline Dimension | 105.5X67.2X4.45 |
| Viewing Direction | - |
| Bonding Type | - |
| Pixel Configuration | Stripe |
