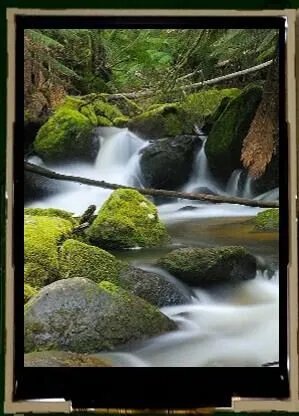

ATM0177B3AS Product Page
Resources
Datasheet
Request a Quote
Total Qty Available: 0
| Product Specifics | |
|---|---|
| Overall Module Size | 1.77 |
| Resolution | 128XR.G.B.X160 |
| Brightness (Nits) | 500 |
| Contrast | 500 |
| Backlight | LED |
| Viewing Angle | +70/-70 +45/-30 |
| Weight | - |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | - |
| Interface | MCU (SPI) |
| Active Area | 28.03X35.04 mm |
| Outline Dimension | 34.7X46.7 mm |
| Viewing Direction | TN |
| Bonding Type | - |
| Pixel Configuration | - |
