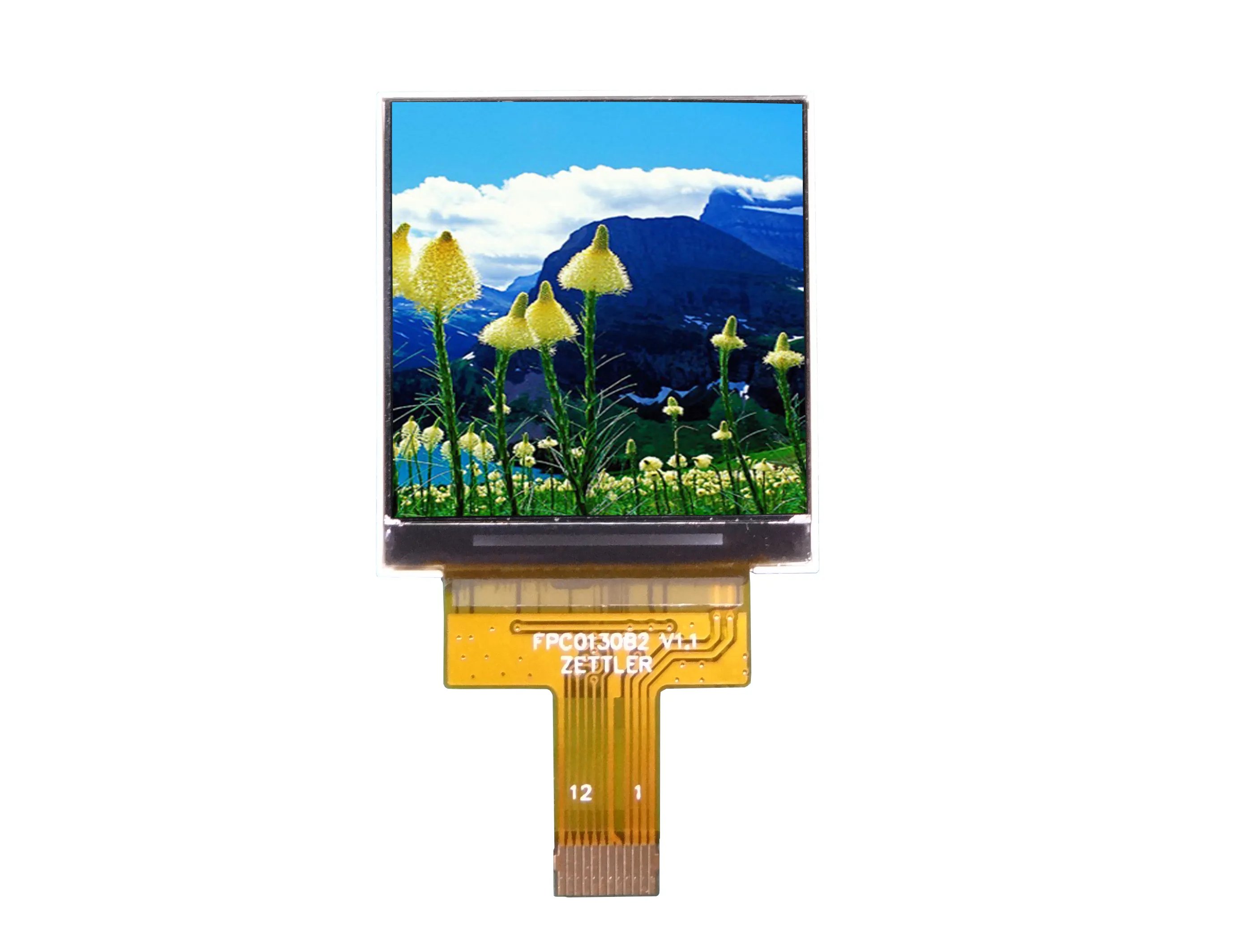

ATM0130B3 Product Page

Resources

ATM0130B3
Product Specifics
Overall Module Size1.3
Resolution240 X 240
Brightness (Nits)500
Contrast800
BacklightLED
Viewing Angle+80/-80
+80/-80
Weight
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceRGB/MCU optional
Active Area23.4X23.4mm
Outline Dimension26.85X29.55X1.73mm
Viewing DirectionFree
Bonding TypeCOG
Pixel ConfigurationStripe
