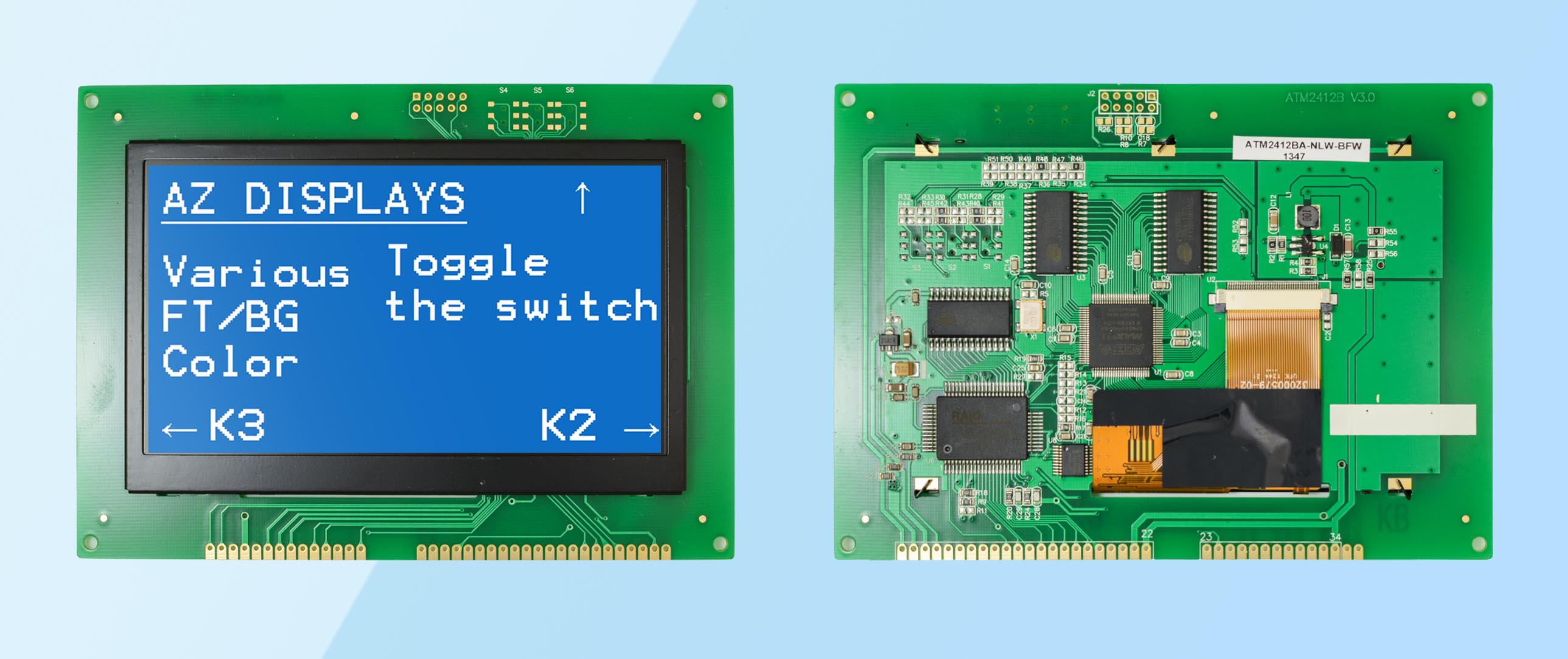

ATM2412B Digital TFT LCD Panel

ATM2412B Digital TFT LCD Panel Description

Module Specifications

Overall Module Size5"
Resolution240XR.G.B.X128
Brightness (Nits)250
Contrast400
Power Consumption1.355
Back LightLED
Viewing Angle+80/-80
+80/-80
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
Interface8 Bit Parallel
Active Area113.5X64.0 mm
Outline Dimension144.0X104.0X10.0 mm
Bonding TypeCOB
Pixel ConfigurationStripe
