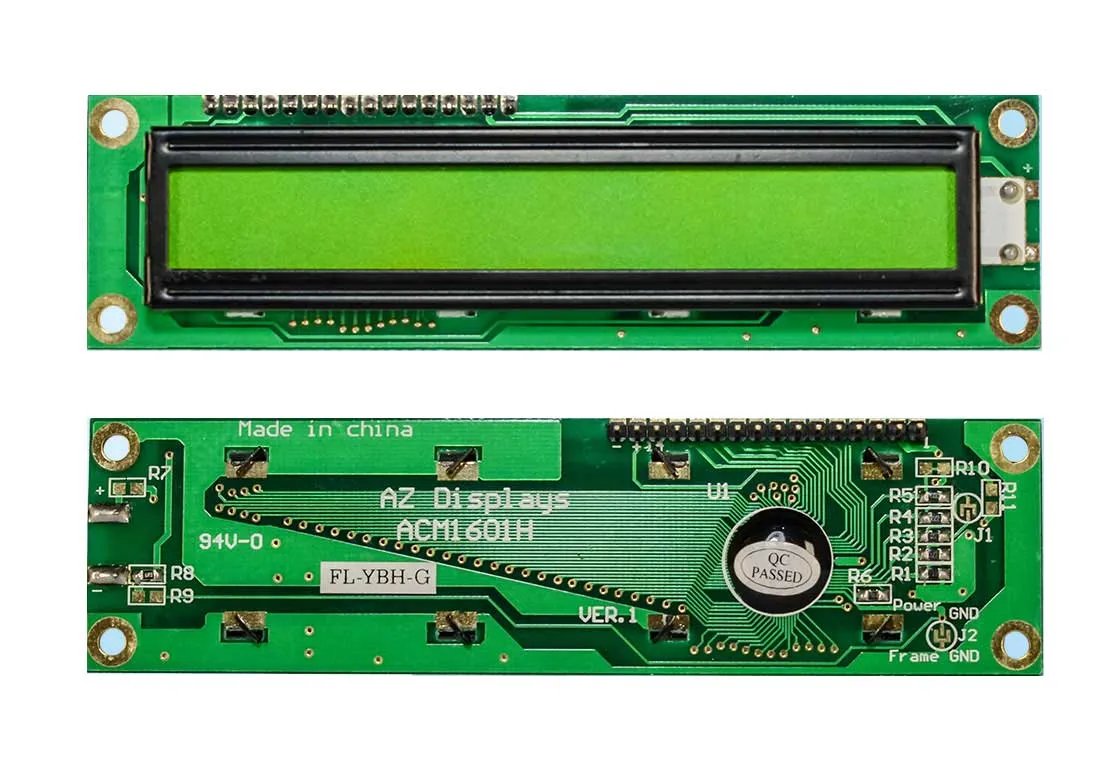

Character modules: ACM1601H-RN-GTW
Datasheet
View Part Drawing
Request a Quote
Total Qty Available: 0
Features:
- 16 Characters x 1 Lines
- 5x7 Dot Matrix Character + Cursor
- HD44780 Equivalent LCD Controller/Driver Built-In
- 4-bit or 8-bit MPU Interface
| Product Specifics | |
|---|---|
| Series | ACM1601H |
| Format | 16 x 1 |
| Viewing Area (mm) | 99.0 x 13.0 |
| Supply Voltage | 5.0V/3.3V |
| Outline Dimensions (mm) | 122.0X33.0X14.5mm |
| Polarizer Type | Reflective |
| Backlight Type | None |
| Backlight Color | - |
| Fluid Type | Grey Mode STN |
Nomenclature Diagram
