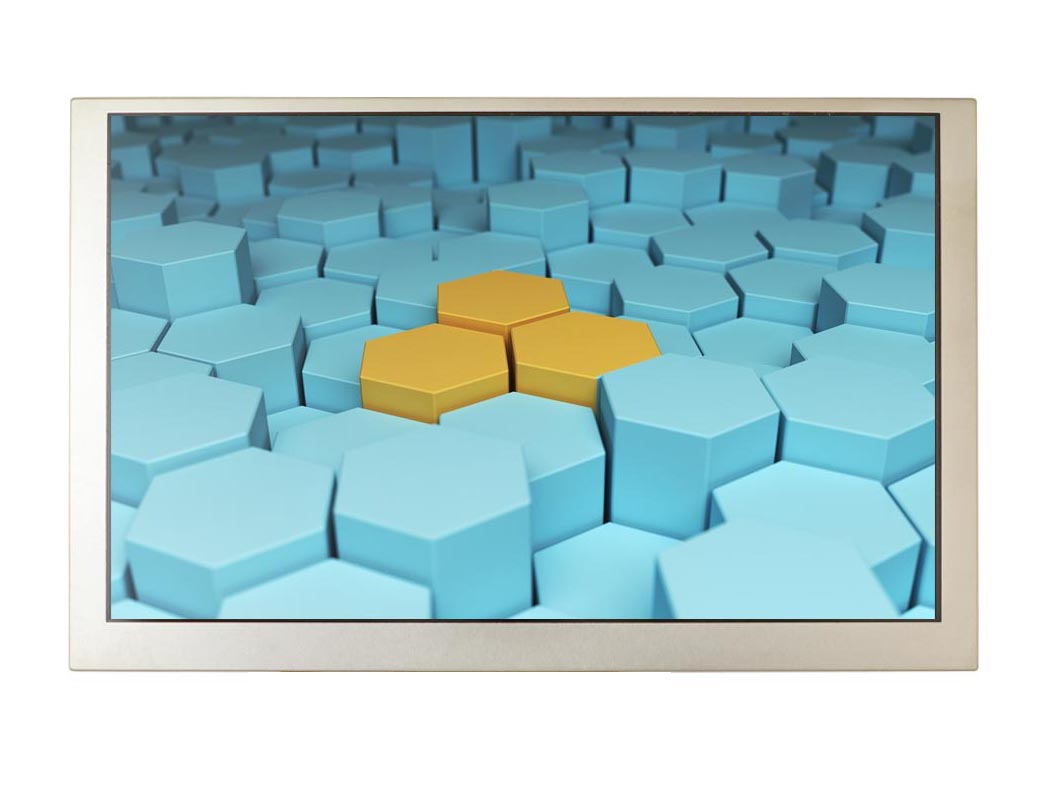

ATM0500L19B Digital TFT LCD Panel
Quicklinks:
ATM0500L19B Digital TFT LCD Panel Description
5" TFT LCD Display, 800 x 480, 500 nits, LVDS, 40 pinModule Specifications
Overall Module Size | 5" |
Resolution | 800XR.G.B.X480 |
Brightness (Nits) | 500 |
Contrast | 800 |
Back Light | LED |
Viewing Angle | +80/-80 +80/-80 |
Operation Temperature (℃) | -20~+70 |
Storage Temperature (℃) | -30~+80 |
Interface | LVDS |
Active Area | 108.0X64.80mm |
Outline Dimension | 120.7X75.8X7.4mm |
Viewing Direction | 12 O'clock |
Pixel Configuration | Stripe |
