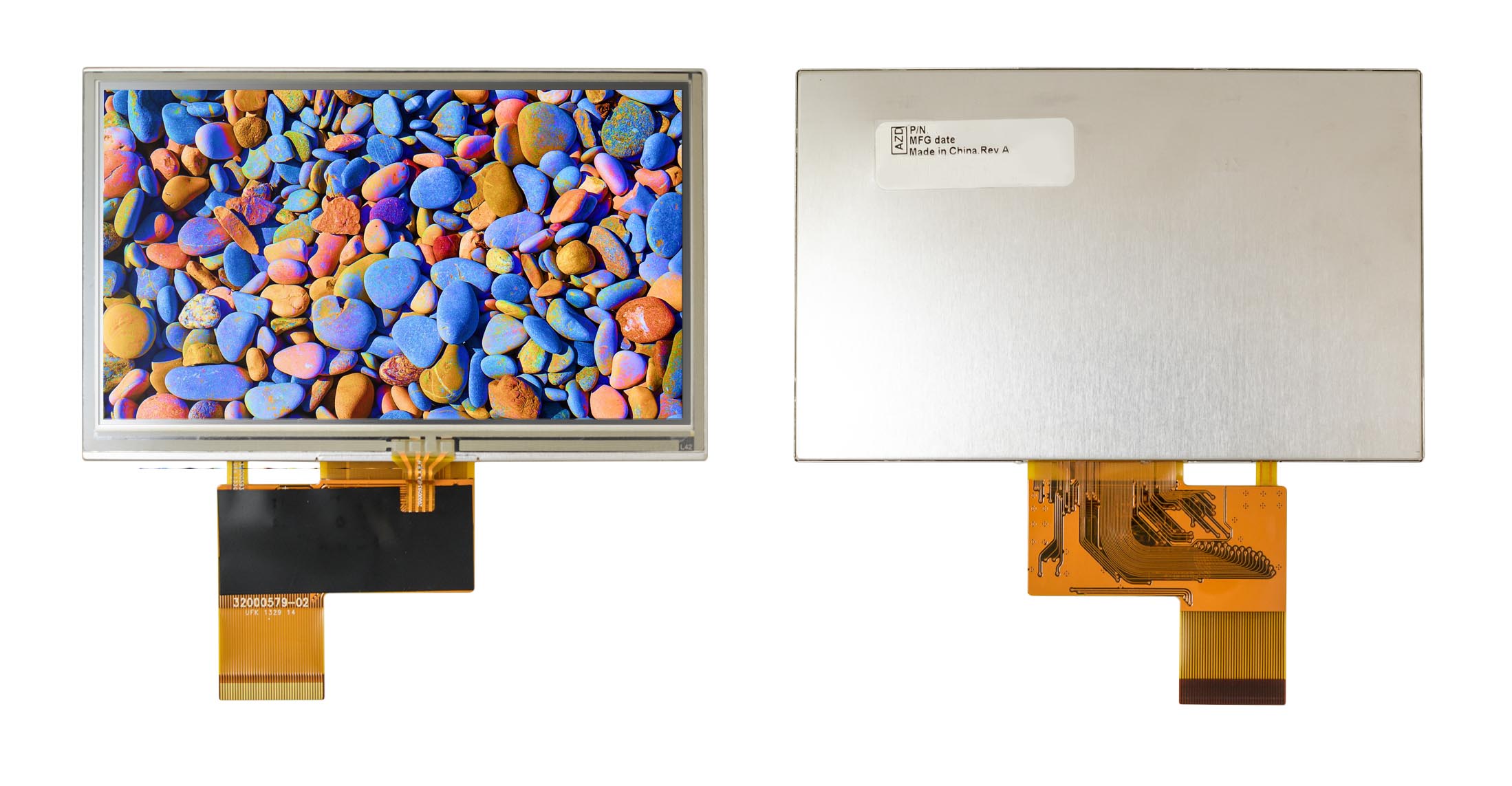

ATM0500D19K-T Digital TFT LCD Panel
Quicklinks:
ATM0500D19K-T Digital TFT LCD Panel Description
Module Specifications
Overall Module Size | 5" |
Resolution | 800XR.G.B.X480 |
Brightness (Nits) | 850 |
Contrast | 800 |
Power Consumption | 2.55 |
Back Light | LED |
Viewing Angle | +80/-80 +80/-80 |
Weight | |
Operation Temperature (℃) | -20~+70 |
Storage Temperature (℃) | -30~+80 |
Interface | Digital RGB |
Active Area | 108.00X64.8 mm |
Viewing Area | |
Outline Dimension | 120.7X75.8X4.2 mm |
Viewing Direction | IPS |
Bonding Type | COG |
Pixel Configuration | Stripe |
