ATM0430D12B-T Digital TFT LCD Panel

Quicklinks:

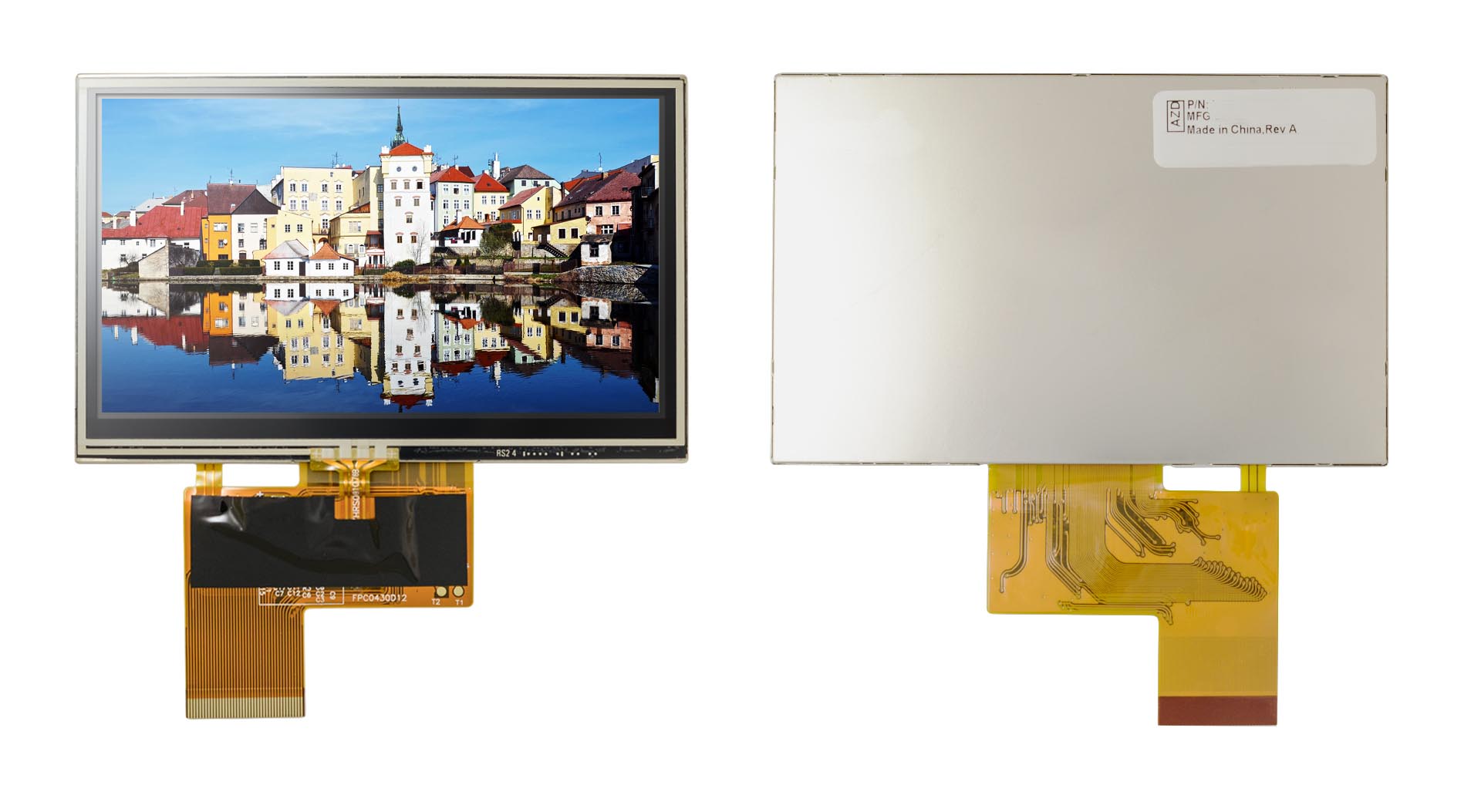

Product Picture:

ATM0430D12B-T Digital TFT LCD Panel Description

4.3" TFT LCD Display,480 x 272, 640 nits, RGB, 40 pin, w/ Resistive TP

Module Specifications

Overall Module Size4.3"
Resolution480XR.G.B.X272
Brightness (Nits)700
Contrast500
Power Consumption0.056
Back LightLED
Viewing Angle+70/-70
+70/-50
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area95.04X53.856 mm
Outline Dimension105.5X67.2X4.05mm
Viewing Direction12 O'clock
Bonding TypeCOG
Pixel ConfigurationStripe
