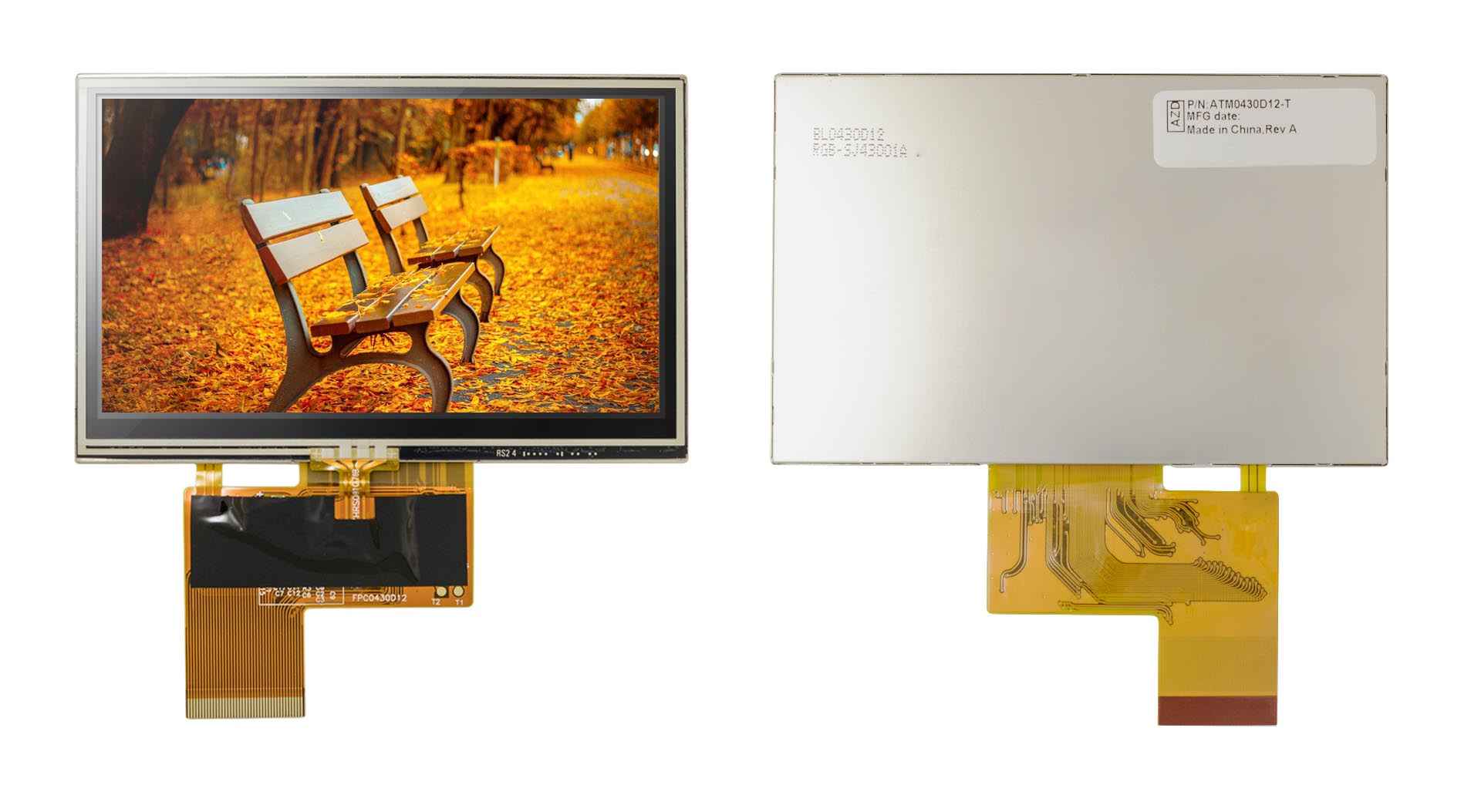

ATM0430D12-T Digital TFT LCD Panel
Quicklinks:
ATM0430D12-T Digital TFT LCD Panel Description
4.3" TFT LCD Display,480 x 272, 400 nits, RGB, 40 pin, w/ Resistive TPModule Specifications
Overall Module Size | 4.3" |
Resolution | 480XR.G.B.X272 |
Brightness (Nits) | 400 |
Contrast | 500 |
Power Consumption | 0.614 |
Back Light | LED |
Viewing Angle | +70/-50 +70/-70 |
Weight | 58 g |
Operation Temperature (℃) | -20~+70 |
Storage Temperature (℃) | -30~+80 |
Interface | Digital RGB |
Active Area | 95.04X53.856 mm |
Outline Dimension | 105.58X67.2X4.05 mm |
Viewing Direction | 12 O'clock |
Bonding Type | COG |
Pixel Configuration | Stripe |
